Features
*Suitable for large workpieces that are difficult to move.
*Demagnetize the workpieces one area by one (approximately 10 seconds each time), multiple operations can completely demagnetize the entire workpiece
*Patented low frequency attenuating a& alternating magnetic field with strong penetration. Able to demagnetize a thick solid workpiece.
* The direction of the demagnetizer can be changed, up, down, and horizontal can be demagnetized.

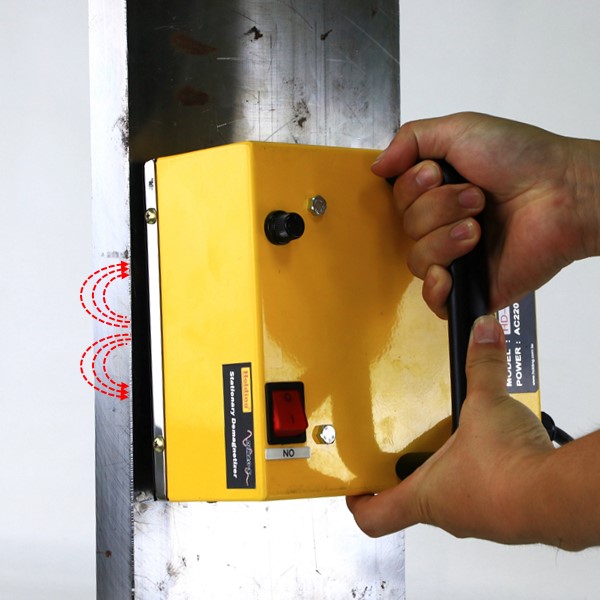

Example of vertically Demagentizaing

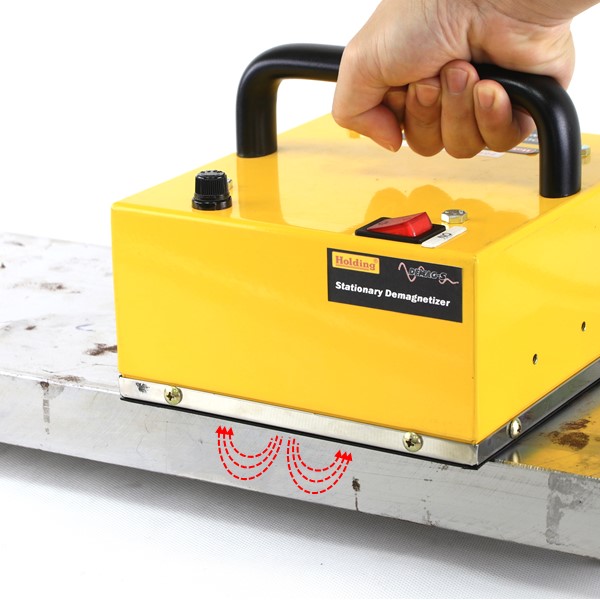

Example of Horizontal Demagentizaing
Operations
1. Place the workpiece in the designated area.

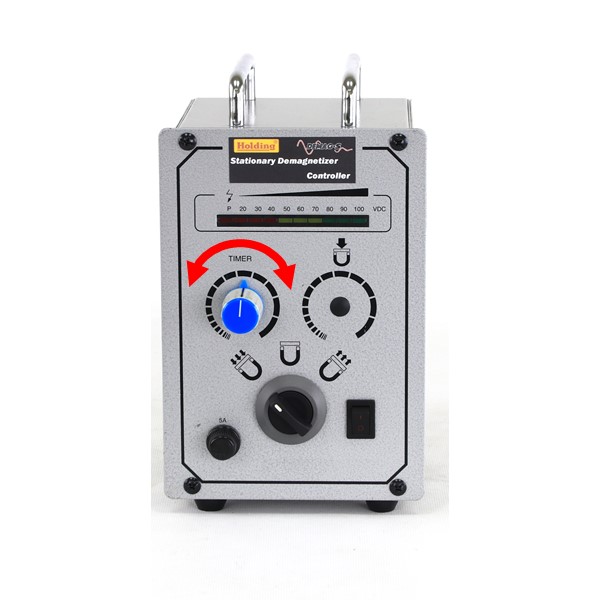

2. Adjust the demagnetization time of HD-SC115 controller. In principle, the longer time the effect is better.

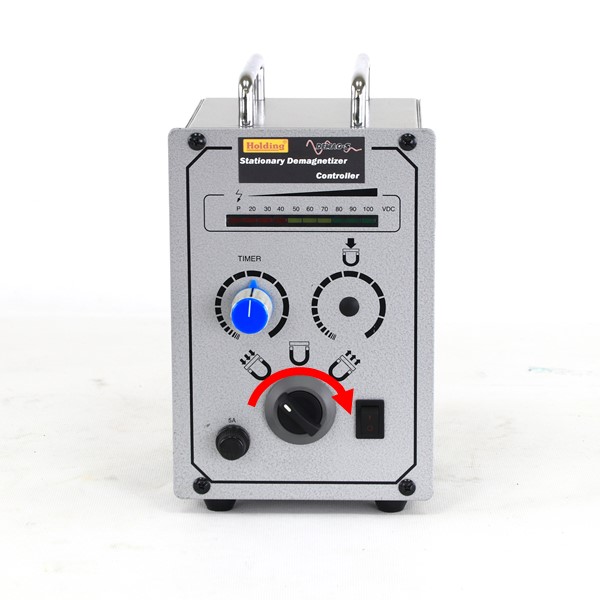

3. Turn the knob on HD-SC115 to start. A single magnetization takes about 10~15 secs.

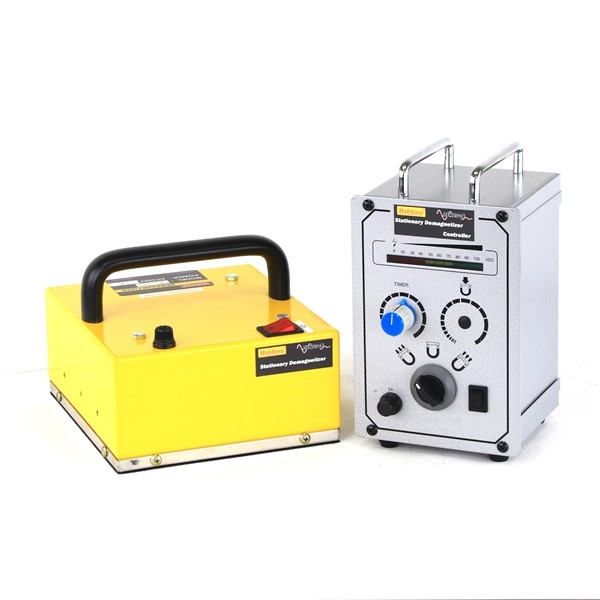

Specifications
MODEL | DIMENSION (L×W×H) | POWER | CURRENT | WEIGHT |
HD-SH270 (Handy Demg-S) |
210 × 185 × 150 mm |
one phase AC 110V 60Hz
|
3A |
9.8KG |
HD-SC115 (Controller) |
138 × 160 × 235 mm |
2.4KG |
