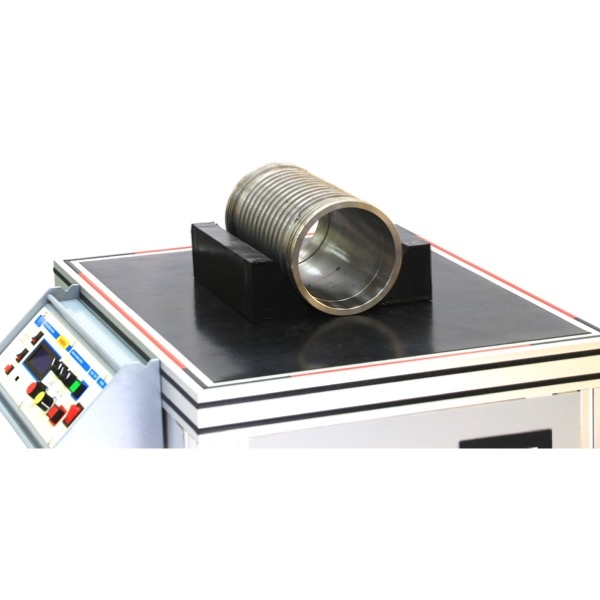

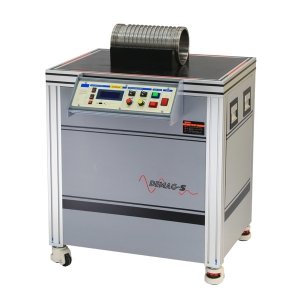

Model : HD-SV2525
Product Description
  • One-key demagnetization. No need to move the workpiece during demagnetization.
  • Demagnetization can be completed in about 10 ~ 15 seconds.
  • Patented low frequency attenuating a& alternating magnetic field with strong penetration. Able to demagnetize thick solid workpiece.
  • The V-shape demagnetizing coil is specially designed for ring-shaped workpieces, suitable for workpieces with a ring diameter from 150-350 mm.  Especially for steel rings and steel pipe.
  • Multiple machines can be combined to increase the effective demagnetization length.
  • Equipped with a Tesla meter. Can confirm the demagnetization effect immediately.



proimages/Misc/Patended2.png

Catalog

proimages/E-catalog/Sta_cata/20210624_靜止型英文版_首頁.jpg

Features

* One-key demagnetization. No need to move the workpiece during demagnetization.

* Auto-attenuated alternating magnetic field

proimages/design/products/Demag/Stationary/con_vs_sta.png

* Low-frequency alternating magnetic field

proimages/design/products/Demag/Stationary/ac_vs_low.png

* Eq* Equipped with a Tesla meter. Can confirm the demagnetization effect immediately.

proimages/design/products/Demag/Stationary/檢測儀.jpg

Specifications

MODELDEMAG.
AREA
DIMENSION
(L×W×H)
APPLICABLE
RING SIZE
VOLTAGECURRENT
HD-SV2525 250×250mm 380×480×1200mm Diameter: Ø150~350mm
Length:<250mm
1Φ AC220/380V
(50/60HZ)
20A

Operations

<Control Panel Introduction>

The panel is divided into three main blocks

* Tesla Meter Control
* Demagnetizer Control
* Power Switch

proimages/design/products/Demag/operation/面板EN.jpg

 <Instructions of Stationary Demagnetizing Machine>

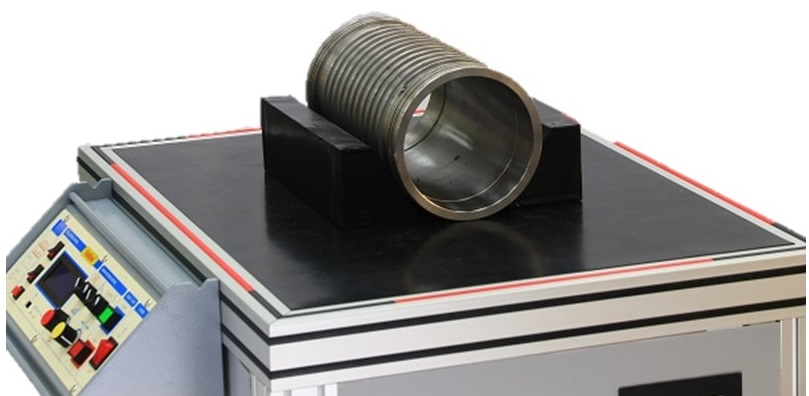

a.     Place the workpiece in the designated area
proimages/design/products/Demag/Stationary/靜止型應用(圓環).jpg

b.    Adjusting the demagnetization parameters:

Turn the left knob to adjust the demagnetization magnetic field (turn right to increase).

Turn the right knob to adjust the demagnetization time (turn right to increase).

proimages/design/products/Demag/operation/調整EN.jpg

c.     Start & Stop

 proimages/design/products/Demag/operation/電源EN.jpg

 <Instructions of Tesla Meter>

Note: The Tesla meter can only be operated during standby mode.

proimages/design/products/Demag/operation/靜止型操作說明-P2-new.jpg

a. Insert the Tesla sensor probe, and move the probe to the point to be measured on the workpiece.

b. Switch on the "Real / Hold" button to hold the highest value among the measured values.

 proimages/design/products/Demag/operation/最大值EN.jpg

c. Use "G / mT" button to select G or mT as the measurement unit
proimages/design/products/Demag/operation/單位切換EN.jpg

d. Use the "Zero" button to subtract the ambient magnetic field.
proimages/design/products/Demag/operation/歸零EN.jpg

Usages

<Normal Usage>

Placing the workpiece in the designated area to demagnetize.
proimages/design/products/Demag/Stationary/靜止型應用(圓環).jpg

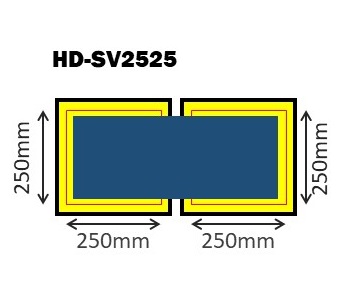

<Combination of Multiple Machines>

Can be combined to demagnetize larger workpieces.

Examples of demagnetizing with 2 HD-SV2525s.
proimages/design/products/Demag/Stationary/Circle/環狀合併.jpg
