Model : HD-800
Product Description
  • Special lipophilic belt. Good oil skimming efficiency
  • Designed for CNC. Installing the machine on the oil storage tank, hanging the belt down, and the oil skimmer can continuously to absorb and discharge oil.
  • The floating oil adheres to the belt, and will be brought up to the oil scraper on the machine to discharge.
  • Oil skimming capacity: 4 L/hr.
  • With 24-hour timer.
  • Can prevent the cutting fluid from spoiling due to rancid bacteria and extend the lifetime.
  • Can improve processing accuracy and reduce pollution.
  • Three sizes of belts to choose from.
proimages/Misc/Patended2.png

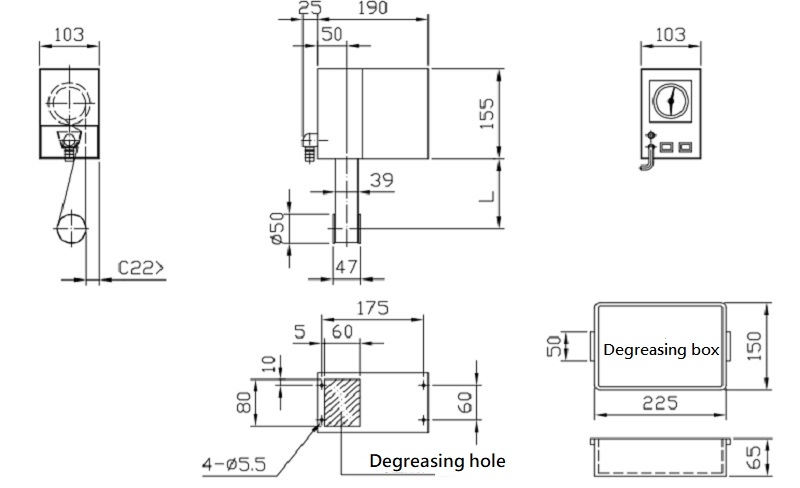

MODELDIMENSION
(LxWxH)
POWERBELT L
(EXPOSED/ALL)
PIPEWEIGHT
HD-800 215×103×155 mm
AC110V/220V
W
39
225 / 800mm
125 / 620mm
 90  / 550mm
Φ22mm/
L:500mm
2.6KG

Details
proimages/design/products/Oil/800-OP.jpg   proimages/design/products/Oil/800-Mode1.jpg    proimages/design/products/Oil/800-Mode11.jpg    proimages/design/products/Oil/800-timer.jpg
