sPINner (Two Platforms w/t Twin Spindles)

sPINner (Two Platforms w/t Twin Spindles)
Control Panel
Control Panel

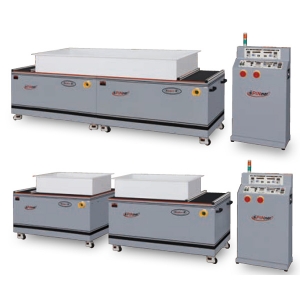

Model : HD-7400
Product Description
  • Two-platform system. Each platform has twin spindles with horizontal movement capability.
  • Can be used separately or combine to enlarge the grinding area.
  • Suitable for the large, long, or wide workpiece.
  • Longest grinding area is about 300 × 1600 mm
  • Widest grinding size is about 600 × 800 mm
proimages/Misc/Patended2.png

Inquiry

Two-platform Twin-spindle Horizontal-Movement system

* Each platform is an independent HD-7200
* Each has twin spindles and horizontal movement capability.

Grinding are of each platform: 800 x 300mm

proimages/grindingrange_pic/7200.png

* The two platforms can be combined to grind very long or very wide parts.
Grinding area of horizontal combination:  1600 x 300mm

proimages/grindingrange_pic/7400_2.png
Grinding area of horizontal combination:  800 x 600mm
proimages/grindingrange_pic/7400_1.png

Features
*Grinds for High Precision
Best for High-Precision Parts such as gears, special screws.
Best for fragile, thin, long parts

*Grinds Every Corner
The pins reach every corner. Best for irregular parts.

More Info

Effect
*Deburring & Slightly Rounding Sharp Edges
proimages/GrindingComp/01Milling/投影片08.jpg


*Polishing, Removing Machining Marks and Oxide Layers
proimages/GrindingComp/01Milling/投影片06.jpg

More Grinding Cases


Video



Specifications

MODELDIMENSIONS (LxWxH)CONTROLLER DIMENSION (LxWxH)CONTAINER
SIZE		POWERWEIGHT
HD-7400 1480x680x765mm 525x325x1050mm Customized 3Φ
 AC220/380V
(50/60HZ)		 1000KG
MODELMAX GRINDING CAPACITY（KG）GRIND RANGEACCESSORIES
HD-7400 Copper, Stainless steel
(Non-Magnetic material)
 A. 300x800mmx2

B. 300x1600mm

C. 600x800mm		 1. Stainless pins 24KG
2. Plastic container 4 set
3. Separating container 1 set
4. Magnetic Sleeve 5 set
5. Grinding liquid (20,000c.c.)
6. Operation manual
Aluminum, Zinc, Iron, Steel, Stainless steel
(Magnetic material)



Operations
* Main Control Panel
proimages/sPINner/operation/7200-E.jpg

1.(FINISHED ALARM): It sounds, and indicator lightens as soon as the procession has completed.
2.Frequency display and error message display: Show the preset running frequency or the error message.
3.SPEED ADJUST: The setting range is between 10 to 60Hz.
4.Frequency display (LED).
5.Grinding program 1: 5a is the timer, and 5b is the rotation direction control.
6.Grinding program 2: 6a is the timer, and 6b is the rotation direction control.
7.Power source.
8.Start: Push the button to start the operation.
9.Stop: Push the button to stop the operation.

* Horizontal Movement Control Panel

proimages/sPINner/operation/7200_Slider.png
1. Horizontal movement speed adjustment: Adjust the speed of the horizontal movement of the magnetic field.
2. Horizontal movement switch: Turn on/off the horizontal movement.
3. Horizontal movement direction indicator.
