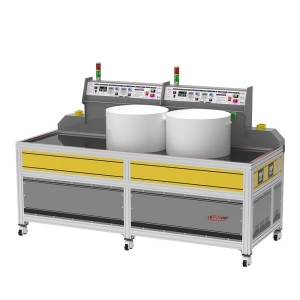

Model : HD-7250
Product Description
  • Customized model
  • Patented TWIN-SPINDLE system
    • Each spindle can be operated independently as 2 sPINners
    • The twin spindles can do a joint horizontal movement.
  • Suitable for long parts, such as plate, panel, or rods. The horizontal movement can grind every corner uniformly.
  • Suitable for the magnetic material. The horizontal movement can help the parts to rotate.
  • The effective grinding area is 1200 × 480 mm
  • The total grinding capacity is 6KG.
proimages/Misc/Patended2.png

Twin-spindle Horizontal-Movement system

* The horizontal movement can grind every corner uniformly.
* The effective grinding area is 1200 × 480 mm.
proimages/sPINner/HD-7250/磁場移動-1.jpg

* Best for long parts, such as CNC milled plate, panel, or rods

Aluminum Panel Grinding Case
proimages/sPINner/HD-7200/大鋁板2.jpg

Features

*Grinds for High Precision
*Grinds Every Corner

More Info

Effect
*Deburring & Slightly Rounding Sharp Edges
proimages/GrindingComp/01Milling/投影片08.jpg


*
Polishing, Removing Machining Marks and Oxide Layers
proimages/GrindingComp/01Milling/投影片06.jpg

More Grinding Cases


Video



Specifications

MODELDIMENSIONS
(LxWxH)
Grinding ZonePOWERWEIGHT
HD-7250 2022x830x1370 mm 1200x480 mm 3Φ AC220
(60HZ)
500KG
MODELMAX GRINDING CAPACITY(KG)ACCESSORIES
HD-7250 Copper, Stainless steel,
Aluminum, Zinc
(Non-Magnetic material)
6 KG 1. Stainless pins 12KG
2. Plastic container 2 set
3. Separating container 1 set
4. Magnetic Sleeve 1 set
5. Grinding liquid (12,000c.c.)
6. Operation manual
Iron, Steel, Stainless steel
(Magnetic material)
3 KG

Operations
* Main Control Panel
proimages/sPINner/HD-7250/HD-7250-面板.jpg

1. FINISHED ALARM: It sounds, and indicator lightens as soon as the procession has completed.
2. Frequency display and error message display: Show the preset running frequency or the error message.
3. The First Spindle Program: 3a is the timer, 3b is the rotation direction control, and 3c is the speed adjust.
4. The Second Spindle Program: 4a is the timer, 4b is the rotation direction control, and 4c is the speed adjust.
5. Frequency display (LED).
6. Power source.
7. Start: Push the button to start the operation.
8. Stop: Push the button to stop the operation.
